Grass cover compared to baseline - December

• Weighted means take into account the number of days in each month

import glob
import itertools
import os
import sys
from datetime import datetime, timezone
import geopandas as gpd
import matplotlib.pyplot as plt
import numpy as np
import xarray as xr
import climag.climag as cplt
from climag import climag_plot

exp_list = ["historical", "rcp45", "rcp85"]
model_list = ["CNRM-CM5", "EC-EARTH", "HadGEM2-ES", "MPI-ESM-LR"]
dataset_list = ["EURO-CORDEX", "HiResIreland"]

def keep_minimal_vars(data):
    """
    Drop variables that are not needed
    """

    data = data.drop_vars(
        [
            "bm_gv",
            "bm_gr",
            "bm_dv",
            "bm_dr",
            "age_gv",
            "age_gr",
            "age_dv",
            "age_dr",
            "omd_gv",
            "omd_gr",
            "lai",
            "env",
            "wr",
            "aet",
            "sen_gv",
            "sen_gr",
            "abs_dv",
            "abs_dr",
            "i_bm",
            "h_bm",
            "pgro",
            "c_bm",
            "gro",
        ]
    )

    return data

def combine_datasets(dataset_dict, dataset_crs):
    dataset = xr.combine_by_coords(
        dataset_dict.values(), combine_attrs="override"
    )
    dataset.rio.write_crs(dataset_crs, inplace=True)

    return dataset

def mean_wgt(ds, months):
    ds_m = ds.sel(time=ds["time"].dt.month.isin(months))

    weights = (
        ds_m["time"].dt.days_in_month.groupby("time.year")
        / ds_m["time"].dt.days_in_month.groupby("time.year").sum()
    )

    # test that the sum of weights for each season is one
    np.testing.assert_allclose(
        weights.groupby("time.year").sum().values,
        np.ones(len(set(weights["year"].values))),
    )

    # calculate the weighted average
    ds_m = (ds_m * weights).groupby("time.year").sum(dim="time")

    return ds_m

def reduce_dataset(dataset):
    ds = {}
    ds_son = {}
    # ds_mam = {}
    # ds_jja = {}

    for exp, model in itertools.product(exp_list, model_list):
        # auto-rechunking may cause NotImplementedError with object dtype
        # where it will not be able to estimate the size in bytes of object
        # data
        if model == "HadGEM2-ES":
            CHUNKS = 300
        else:
            CHUNKS = "auto"

        ds[f"{model}_{exp}"] = xr.open_mfdataset(
            glob.glob(
                os.path.join(
                    "data",
                    "ModVege",
                    dataset,
                    exp,
                    model,
                    f"*{dataset}*{model}*{exp}*.nc",
                )
            ),
            chunks=CHUNKS,
            decode_coords="all",
        )

        # copy CRS
        crs_ds = ds[f"{model}_{exp}"].rio.crs

        # remove spin-up year
        if exp == "historical":
            ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].sel(
                time=slice("1976", "2005")
            )
        else:
            ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].sel(
                time=slice("2041", "2070")
            )

        # convert HadGEM2-ES data back to 360-day calendar
        # this ensures that the correct weighting is applied when
        # calculating the weighted average
        if model == "HadGEM2-ES":
            ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].convert_calendar(
                "360_day", align_on="year"
            )

        # assign new coordinates and dimensions
        ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].assign_coords(exp=exp)
        ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].expand_dims(dim="exp")
        ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].assign_coords(model=model)
        ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].expand_dims(dim="model")

        # # calculate cumulative biomass
        # ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].assign(
        #     bm_t=(
        #         ds[f"{model}_{exp}"]["bm"] + ds[f"{model}_{exp}"]["i_bm"] +
        #         ds[f"{model}_{exp}"]["h_bm"]
        #     )
        # )

        # drop unnecessary variables
        ds[f"{model}_{exp}"] = keep_minimal_vars(data=ds[f"{model}_{exp}"])

        # weighted mean - yearly, Dec
        ds_son[f"{model}_{exp}"] = mean_wgt(ds[f"{model}_{exp}"], [12])

    # combine data
    # ds = combine_datasets(ds, crs_ds)
    ds_son = combine_datasets(ds_son, crs_ds)
    # ds_mam = combine_datasets(ds_mam, crs_ds)
    # ds_jja = combine_datasets(ds_jja, crs_ds)

    # ensemble mean
    ds_son = ds_son.mean(dim="model", skipna=True)
    # ds_mam = ds_mam.mean(dim="model", skipna=True)
    # ds_jja = ds_jja.mean(dim="model", skipna=True)

    # long-term average
    ds_son_lta = ds_son.mean(dim="year", skipna=True)

    # # shift SON year by one
    # ds_son["year"] = ds_son["year"] + 1

    return (
        ds_son,
        ds_son_lta,
    )  # ds_jja, ds_mam

# mask out non-pasture areas
mask_layer = gpd.read_file(
    os.path.join("data", "boundaries", "boundaries_all.gpkg"),
    layer="CLC_2018_MASK_PASTURE_2157_IE",
)
# mask for offshore areas
ie_bbox = gpd.read_file(
    os.path.join("data", "boundaries", "boundaries_all.gpkg"),
    layer="ne_10m_land_2157_IE_BBOX_DIFF",
)

EURO-CORDEX

ds_son, ds_son_lta = reduce_dataset("EURO-CORDEX")

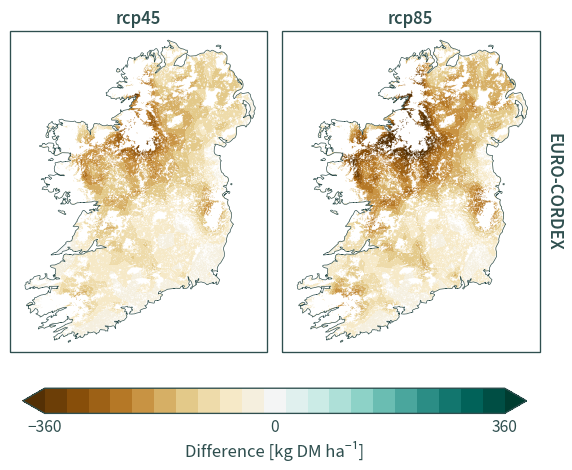

Anomalies in Dec farm cover compared to the historical LTA

plot_data = (
    (
        ds_son.mean(dim="year", skipna=True)
        - ds_son_lta.sel(exp="historical").drop_vars("exp")
    )
    .sel(exp=["rcp45", "rcp85"])
    .assign_coords(dataset="EURO-CORDEX")
    .expand_dims(dim="dataset")
)

# plot_data["exp"] = plot_data["exp"].where(
#     plot_data["exp"] != "rcp45", "rcp45 - historical"
# )

# plot_data["exp"] = plot_data["exp"].where(
#     plot_data["exp"] != "rcp85", "rcp85 - historical"
# )

fig = plot_data["bm"].plot.contourf(
    x="rlon",
    y="rlat",
    col="exp",
    row="dataset",
    robust=True,
    extend="both",
    cmap="BrBG",
    subplot_kws={"projection": cplt.projection_hiresireland},
    transform=cplt.rotated_pole_transform(plot_data),
    xlim=(-1.775, 1.6),
    ylim=(-2.1, 2.1),
    figsize=(6, 4.75),
    levels=climag_plot.colorbar_levels(360),
    cbar_kwargs={
        "label": "Difference [kg DM ha⁻¹]",
        "aspect": 20,
        "location": "bottom",
        "fraction": 0.085,
        "shrink": 0.95,
        "pad": 0.085,
        "extendfrac": "auto",
        "ticks": climag_plot.colorbar_ticks(360),
    },
)
for axis in fig.axs.flat:
    mask_layer.to_crs(cplt.projection_hiresireland).plot(
        ax=axis, color="white", linewidth=0
    )
    ie_bbox.to_crs(cplt.projection_hiresireland).plot(
        ax=axis, edgecolor="darkslategrey", color="white", linewidth=0.5
    )
fig.set_titles("{value}", weight="semibold", fontsize=14)
plt.show()

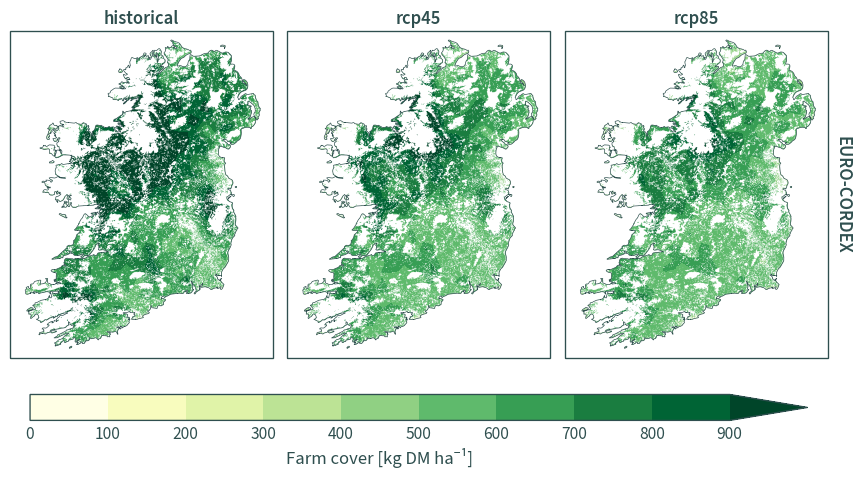

Actual farm cover

plot_data = (
    ds_son.mean(dim="year", skipna=True)
    .assign_coords(dataset="EURO-CORDEX")
    .expand_dims(dim="dataset")
)

fig = plot_data["bm"].plot.contourf(
    x="rlon",
    y="rlat",
    col="exp",
    row="dataset",
    robust=True,
    extend="max",
    cmap="YlGn",
    subplot_kws={"projection": cplt.projection_hiresireland},
    transform=cplt.rotated_pole_transform(plot_data),
    xlim=(-1.775, 1.6),
    ylim=(-2.1, 2.1),
    figsize=(9, 4.75),
    levels=[n * 100 for n in range(10)],
    cbar_kwargs={
        "label": "Farm cover [kg DM ha⁻¹]",
        "aspect": 30,
        "location": "bottom",
        "fraction": 0.085,
        "shrink": 0.95,
        "pad": 0.085,
        "extendfrac": "auto",
        # "ticks": climag_plot.colorbar_ticks(360)
    },
)
for axis in fig.axs.flat:
    mask_layer.to_crs(cplt.projection_hiresireland).plot(
        ax=axis, color="white", linewidth=0
    )
    ie_bbox.to_crs(cplt.projection_hiresireland).plot(
        ax=axis, edgecolor="darkslategrey", color="white", linewidth=0.5
    )
fig.set_titles("{value}", weight="semibold", fontsize=14)
plt.show()

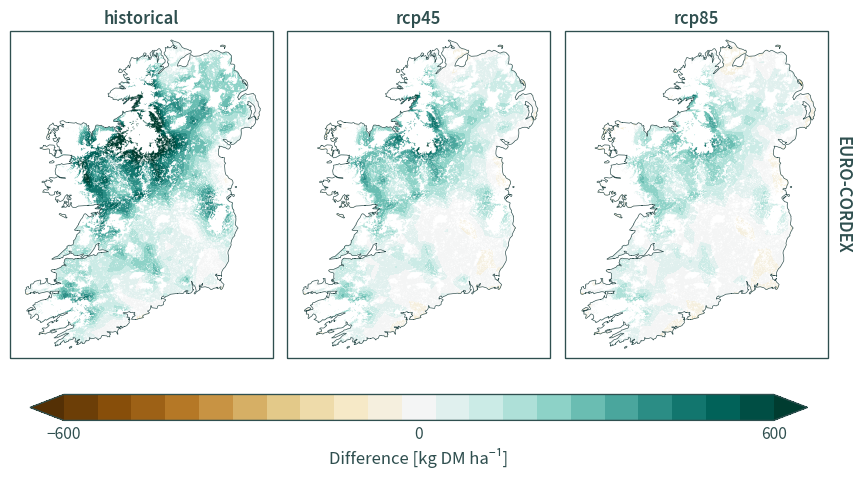

Anomalies in Dec farm cover compared to the baseline

plot_data = (
    (ds_son.mean(dim="year", skipna=True) - 550)
    .assign_coords(dataset="EURO-CORDEX")
    .expand_dims(dim="dataset")
)

fig = plot_data["bm"].plot.contourf(
    x="rlon",
    y="rlat",
    col="exp",
    row="dataset",
    robust=True,
    extend="both",
    cmap="BrBG",
    subplot_kws={"projection": cplt.projection_hiresireland},
    transform=cplt.rotated_pole_transform(plot_data),
    xlim=(-1.775, 1.6),
    ylim=(-2.1, 2.1),
    figsize=(9, 4.75),
    levels=climag_plot.colorbar_levels(600),
    cbar_kwargs={
        "label": "Difference [kg DM ha⁻¹]",
        "aspect": 30,
        "location": "bottom",
        "fraction": 0.085,
        "shrink": 0.95,
        "pad": 0.085,
        "extendfrac": "auto",
        "ticks": climag_plot.colorbar_ticks(600),
    },
)
for axis in fig.axs.flat:
    mask_layer.to_crs(cplt.projection_hiresireland).plot(
        ax=axis, color="white", linewidth=0
    )
    ie_bbox.to_crs(cplt.projection_hiresireland).plot(
        ax=axis, edgecolor="darkslategrey", color="white", linewidth=0.5
    )
fig.set_titles("{value}", weight="semibold", fontsize=14)
plt.show()

HiResIreland

ds_son, ds_son_lta = reduce_dataset("HiResIreland")

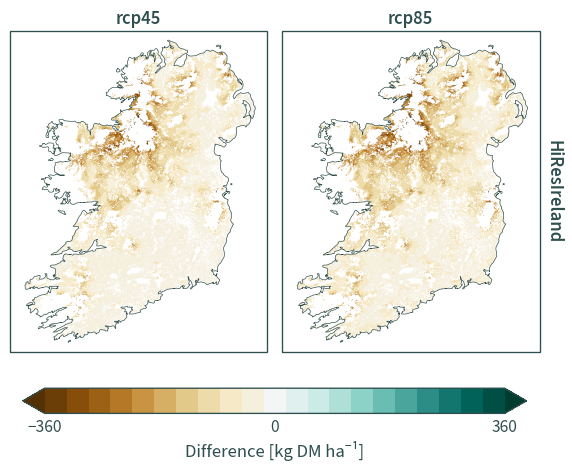

Anomalies in Dec farm cover compared to the historical LTA

plot_data = (
    (
        ds_son.mean(dim="year", skipna=True)
        - ds_son_lta.sel(exp="historical").drop_vars("exp")
    )
    .sel(exp=["rcp45", "rcp85"])
    .assign_coords(dataset="HiResIreland")
    .expand_dims(dim="dataset")
)

# plot_data["exp"] = plot_data["exp"].where(
#     plot_data["exp"] != "rcp45", "rcp45 - historical"
# )

# plot_data["exp"] = plot_data["exp"].where(
#     plot_data["exp"] != "rcp85", "rcp85 - historical"
# )

fig = plot_data["bm"].plot.contourf(
    x="rlon",
    y="rlat",
    col="exp",
    row="dataset",
    robust=True,
    extend="both",
    cmap="BrBG",
    subplot_kws={"projection": cplt.projection_hiresireland},
    transform=cplt.rotated_pole_transform(plot_data),
    xlim=(-1.775, 1.6),
    ylim=(-2.1, 2.1),
    figsize=(6, 4.75),
    levels=climag_plot.colorbar_levels(360),
    cbar_kwargs={
        "label": "Difference [kg DM ha⁻¹]",
        "aspect": 20,
        "location": "bottom",
        "fraction": 0.085,
        "shrink": 0.95,
        "pad": 0.085,
        "extendfrac": "auto",
        "ticks": climag_plot.colorbar_ticks(360),
    },
)
for axis in fig.axs.flat:
    mask_layer.to_crs(cplt.projection_hiresireland).plot(
        ax=axis, color="white", linewidth=0
    )
    ie_bbox.to_crs(cplt.projection_hiresireland).plot(
        ax=axis, edgecolor="darkslategrey", color="white", linewidth=0.5
    )
fig.set_titles("{value}", weight="semibold", fontsize=14)
plt.show()

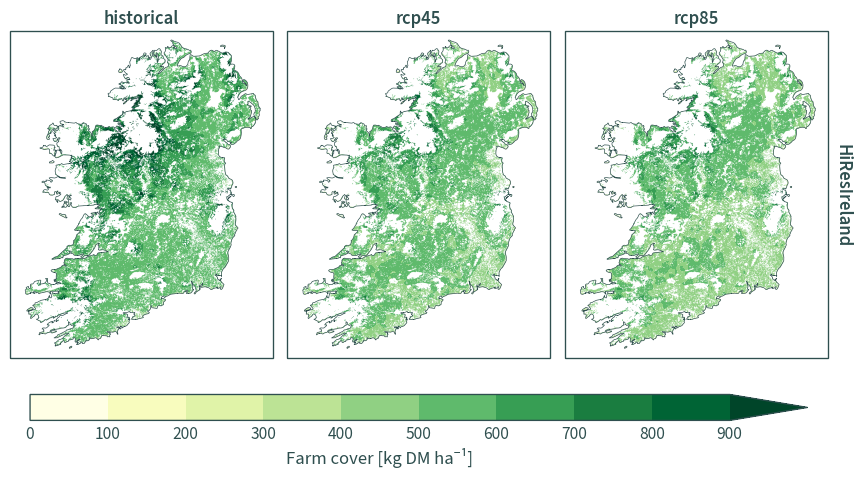

Actual farm cover

plot_data = (
    ds_son.mean(dim="year", skipna=True)
    .assign_coords(dataset="HiResIreland")
    .expand_dims(dim="dataset")
)

fig = plot_data["bm"].plot.contourf(
    x="rlon",
    y="rlat",
    col="exp",
    row="dataset",
    robust=True,
    extend="max",
    cmap="YlGn",
    subplot_kws={"projection": cplt.projection_hiresireland},
    transform=cplt.rotated_pole_transform(plot_data),
    xlim=(-1.775, 1.6),
    ylim=(-2.1, 2.1),
    figsize=(9, 4.75),
    levels=[n * 100 for n in range(10)],
    cbar_kwargs={
        "label": "Farm cover [kg DM ha⁻¹]",
        "aspect": 30,
        "location": "bottom",
        "fraction": 0.085,
        "shrink": 0.95,
        "pad": 0.085,
        "extendfrac": "auto",
        # "ticks": climag_plot.colorbar_ticks(360)
    },
)
for axis in fig.axs.flat:
    mask_layer.to_crs(cplt.projection_hiresireland).plot(
        ax=axis, color="white", linewidth=0
    )
    ie_bbox.to_crs(cplt.projection_hiresireland).plot(
        ax=axis, edgecolor="darkslategrey", color="white", linewidth=0.5
    )
fig.set_titles("{value}", weight="semibold", fontsize=14)
plt.show()

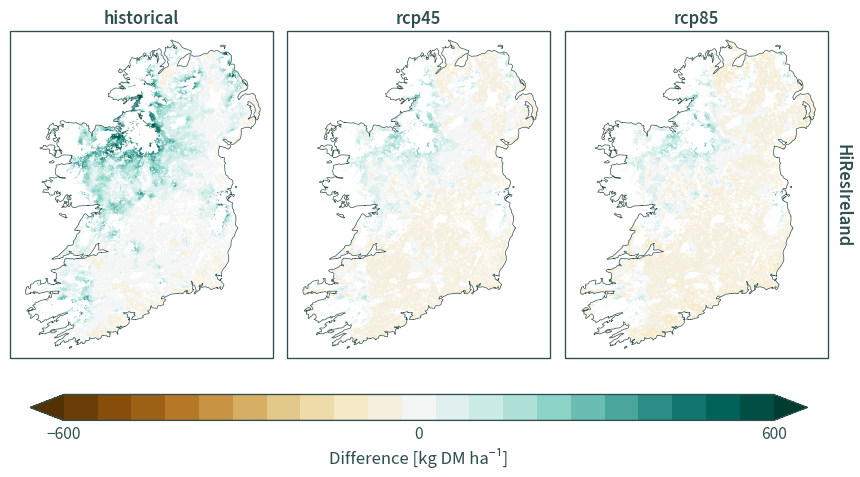

Anomalies in Dec farm cover compared to the baseline

plot_data = (
    (ds_son.mean(dim="year", skipna=True) - 550)
    .assign_coords(dataset="HiResIreland")
    .expand_dims(dim="dataset")
)

fig = plot_data["bm"].plot.contourf(
    x="rlon",
    y="rlat",
    col="exp",
    row="dataset",
    robust=True,
    extend="both",
    cmap="BrBG",
    subplot_kws={"projection": cplt.projection_hiresireland},
    transform=cplt.rotated_pole_transform(plot_data),
    xlim=(-1.775, 1.6),
    ylim=(-2.1, 2.1),
    figsize=(9, 4.75),
    levels=climag_plot.colorbar_levels(600),
    cbar_kwargs={
        "label": "Difference [kg DM ha⁻¹]",
        "aspect": 30,
        "location": "bottom",
        "fraction": 0.085,
        "shrink": 0.95,
        "pad": 0.085,
        "extendfrac": "auto",
        "ticks": climag_plot.colorbar_ticks(600),
    },
)
for axis in fig.axs.flat:
    mask_layer.to_crs(cplt.projection_hiresireland).plot(
        ax=axis, color="white", linewidth=0
    )
    ie_bbox.to_crs(cplt.projection_hiresireland).plot(
        ax=axis, edgecolor="darkslategrey", color="white", linewidth=0.5
    )
fig.set_titles("{value}", weight="semibold", fontsize=14)
plt.show()
