Gridding based on https://james-brennan.github.io/posts/fast_gridding_geopandas/

import os
import itertools
import geopandas as gpd
import matplotlib.pyplot as plt
import numpy as np
import shapely
import xarray as xr
import climag.climag as cplt

Open some gridded climate data#

TS_FILE = os.path.join(
    "data", "HiResIreland", "IE", "IE_HiResIreland_COSMO5_EC-EARTH_rcp45.nc"
)

data = xr.open_dataset(TS_FILE, chunks="auto", decode_coords="all")

data

<xarray.Dataset>
Dimensions:       (time: 11323, rlon: 90, rlat: 116, bnds: 2)
Coordinates:
  * time          (time) datetime64[ns] 2040-01-01T10:30:00 ... 2070-12-31T10...
  * rlon          (rlon) float64 -1.68 -1.645 -1.61 -1.575 ... 1.365 1.4 1.435
  * rlat          (rlat) float64 -1.98 -1.945 -1.91 -1.875 ... 1.975 2.01 2.045
    lon           (rlat, rlon) float32 dask.array<chunksize=(116, 90), meta=np.ndarray>
    lat           (rlat, rlon) float32 dask.array<chunksize=(116, 90), meta=np.ndarray>
    height_2m     float32 ...
    spatial_ref   int64 ...
    time_bnds     (time, bnds) datetime64[ns] dask.array<chunksize=(11323, 2), meta=np.ndarray>
    rotated_pole  int64 ...
Dimensions without coordinates: bnds
Data variables:
    PET           (time, rlat, rlon) float32 dask.array<chunksize=(7481, 76, 59), meta=np.ndarray>
    PP            (time, rlat, rlon) float32 dask.array<chunksize=(7481, 76, 59), meta=np.ndarray>
    T             (time, rlat, rlon) float32 dask.array<chunksize=(7481, 76, 59), meta=np.ndarray>
    PAR           (time, rlat, rlon) float32 dask.array<chunksize=(7481, 76, 59), meta=np.ndarray>
Attributes: (12/13)
    CDI:             Climate Data Interface version 1.9.5 (http://mpimet.mpg....
    Conventions:     CF-1.4
    title:           COSMO5_EC-EARTH_rcp45_4km
    experiment_id:   COSMO5_EC-EARTH_rcp45_4km
    realization:     1
    conventionsURL:  http://www.cfconventions.org/
    ...              ...
    references:      http://www.ichec.ie
    creation_date:   2018-05-21 20:31:05
    frequency:       day
    CDO:             Climate Data Operators version 1.9.5 (http://mpimet.mpg....
    dataset:         IE_HiResIreland_COSMO5_EC-EARTH_rcp45
    comment:         This dataset has been clipped with the Island of Ireland...

# keep only one variable
data = data.drop_vars(names=["PET", "PP", "PAR"])

data

<xarray.Dataset>
Dimensions:       (time: 11323, rlon: 90, rlat: 116, bnds: 2)
Coordinates:
  * time          (time) datetime64[ns] 2040-01-01T10:30:00 ... 2070-12-31T10...
  * rlon          (rlon) float64 -1.68 -1.645 -1.61 -1.575 ... 1.365 1.4 1.435
  * rlat          (rlat) float64 -1.98 -1.945 -1.91 -1.875 ... 1.975 2.01 2.045
    lon           (rlat, rlon) float32 dask.array<chunksize=(116, 90), meta=np.ndarray>
    lat           (rlat, rlon) float32 dask.array<chunksize=(116, 90), meta=np.ndarray>
    height_2m     float32 ...
    spatial_ref   int64 ...
    time_bnds     (time, bnds) datetime64[ns] dask.array<chunksize=(11323, 2), meta=np.ndarray>
    rotated_pole  int64 ...
Dimensions without coordinates: bnds
Data variables:
    T             (time, rlat, rlon) float32 dask.array<chunksize=(7481, 76, 59), meta=np.ndarray>
Attributes: (12/13)
    CDI:             Climate Data Interface version 1.9.5 (http://mpimet.mpg....
    Conventions:     CF-1.4
    title:           COSMO5_EC-EARTH_rcp45_4km
    experiment_id:   COSMO5_EC-EARTH_rcp45_4km
    realization:     1
    conventionsURL:  http://www.cfconventions.org/
    ...              ...
    references:      http://www.ichec.ie
    creation_date:   2018-05-21 20:31:05
    frequency:       day
    CDO:             Climate Data Operators version 1.9.5 (http://mpimet.mpg....
    dataset:         IE_HiResIreland_COSMO5_EC-EARTH_rcp45
    comment:         This dataset has been clipped with the Island of Ireland...

# copy CRS
crs = data.rio.crs

crs

CRS.from_wkt('GEOGCRS["undefined",BASEGEOGCRS["undefined",DATUM["World Geodetic System 1984",ELLIPSOID["WGS 84",6378137,298.257223563,LENGTHUNIT["metre",1]],ID["EPSG",6326]],PRIMEM["Greenwich",0,ANGLEUNIT["degree",0.0174532925199433],ID["EPSG",8901]]],DERIVINGCONVERSION["Pole rotation (netCDF CF convention)",METHOD["Pole rotation (netCDF CF convention)"],PARAMETER["Grid north pole latitude (netCDF CF convention)",36.5999984741211,ANGLEUNIT["degree",0.0174532925199433,ID["EPSG",9122]]],PARAMETER["Grid north pole longitude (netCDF CF convention)",172.100006103516,ANGLEUNIT["degree",0.0174532925199433,ID["EPSG",9122]]],PARAMETER["North pole grid longitude (netCDF CF convention)",0,ANGLEUNIT["degree",0.0174532925199433,ID["EPSG",9122]]]],CS[ellipsoidal,2],AXIS["longitude",east,ORDER[1],ANGLEUNIT["degree",0.0174532925199433,ID["EPSG",9122]]],AXIS["latitude",north,ORDER[2],ANGLEUNIT["degree",0.0174532925199433,ID["EPSG",9122]]]]')

Use the gridded data’s bounds to generate a gridded vector layer#

data.rio.bounds()

(-1.6974999469317746,
 -1.9975000194881274,
 1.452499942163403,
 2.062500076708586)

xmin, ymin, xmax, ymax = data.rio.bounds()
# the difference between two adjacent rotated lat or lon values is the
# cell size
cell_size = float(data["rlat"][1] - data["rlat"][0])

# create the cells in a loop
grid_cells = []
for x0 in np.arange(xmin, xmax + cell_size, cell_size):
    for y0 in np.arange(ymin, ymax + cell_size, cell_size):
        # bounds
        x1 = x0 - cell_size
        y1 = y0 + cell_size
        grid_cells.append(shapely.geometry.box(x0, y0, x1, y1))
grid_cells = gpd.GeoDataFrame(grid_cells, columns=["geometry"], crs=crs)

grid_cells.shape

(10856, 1)

grid_cells.head()

	geometry
0	POLYGON ((-1.73250 -1.99750, -1.73250 -1.96250...
1	POLYGON ((-1.73250 -1.96250, -1.73250 -1.92750...
2	POLYGON ((-1.73250 -1.92750, -1.73250 -1.89250...
3	POLYGON ((-1.73250 -1.89250, -1.73250 -1.85750...
4	POLYGON ((-1.73250 -1.85750, -1.73250 -1.82250...

grid_cells.crs

<Derived Geographic 2D CRS: GEOGCRS["undefined",BASEGEOGCRS["undefined",DATUM[ ...>
Name: undefined
Axis Info [ellipsoidal]:
- lon[east]: Longitude (degree)
- lat[north]: Latitude (degree)
Area of Use:
- undefined
Coordinate Operation:
- name: Pole rotation (netCDF CF convention)
- method: Pole rotation (netCDF CF convention)
Datum: World Geodetic System 1984
- Ellipsoid: WGS 84
- Prime Meridian: Greenwich

Subset climate data to visualise the cells#

data_ = data.sel(time="2041-06-21")

data_

<xarray.Dataset>
Dimensions:       (time: 1, rlon: 90, rlat: 116, bnds: 2)
Coordinates:
  * time          (time) datetime64[ns] 2041-06-21T10:30:00
  * rlon          (rlon) float64 -1.68 -1.645 -1.61 -1.575 ... 1.365 1.4 1.435
  * rlat          (rlat) float64 -1.98 -1.945 -1.91 -1.875 ... 1.975 2.01 2.045
    lon           (rlat, rlon) float32 dask.array<chunksize=(116, 90), meta=np.ndarray>
    lat           (rlat, rlon) float32 dask.array<chunksize=(116, 90), meta=np.ndarray>
    height_2m     float32 ...
    spatial_ref   int64 ...
    time_bnds     (time, bnds) datetime64[ns] dask.array<chunksize=(1, 2), meta=np.ndarray>
    rotated_pole  int64 ...
Dimensions without coordinates: bnds
Data variables:
    T             (time, rlat, rlon) float32 dask.array<chunksize=(1, 76, 59), meta=np.ndarray>
Attributes: (12/13)
    CDI:             Climate Data Interface version 1.9.5 (http://mpimet.mpg....
    Conventions:     CF-1.4
    title:           COSMO5_EC-EARTH_rcp45_4km
    experiment_id:   COSMO5_EC-EARTH_rcp45_4km
    realization:     1
    conventionsURL:  http://www.cfconventions.org/
    ...              ...
    references:      http://www.ichec.ie
    creation_date:   2018-05-21 20:31:05
    frequency:       day
    CDO:             Climate Data Operators version 1.9.5 (http://mpimet.mpg....
    dataset:         IE_HiResIreland_COSMO5_EC-EARTH_rcp45
    comment:         This dataset has been clipped with the Island of Ireland...

# find number of grid cells with data
len(data_["T"].values.flatten()[np.isfinite(data_["T"].values.flatten())])

plot_transform = cplt.rotated_pole_transform(data_)
# plt.figure(figsize=(9, 7))
axs = plt.axes(projection=cplt.projection_hiresireland)

# plot data for the variable
data_["T"].plot(
    ax=axs,
    cmap="Spectral_r",
    x="rlon",
    y="rlat",
    robust=True,
    transform=plot_transform,
)
grid_cells.to_crs(cplt.projection_hiresireland).boundary.plot(
    ax=axs, color="darkslategrey", linewidth=0.2
)

axs.set_title(None)
plt.axis("equal")
plt.tight_layout()
plt.show()

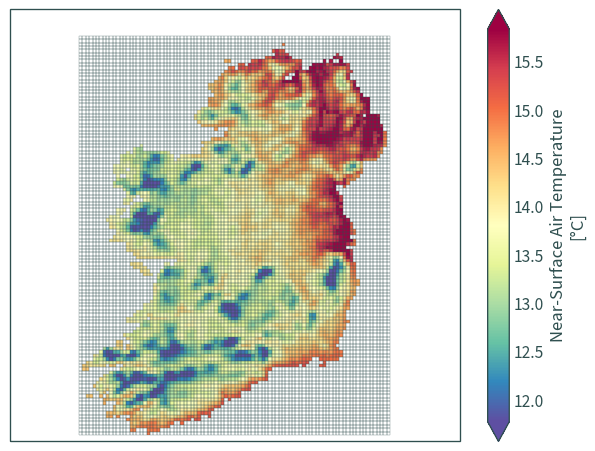

../_images/49460e55829a3f40e6dc815089b70fc17ac4c795ce00d216f1f1f33b203d84e7.png

Drop grid cells without climate data#

grid_centroids = {"wkt": [], "rlon": [], "rlat": []}

for rlon, rlat in itertools.product(
    range(len(data.coords["rlon"])), range(len(data.coords["rlat"]))
):
    data__ = data.isel(rlon=rlon, rlat=rlat)

    # ignore null cells
    if not data__["T"].isnull().all():
        grid_centroids["wkt"].append(
            f"POINT ({float(data__['rlon'].values)} "
            f"{float(data__['rlat'].values)})"
        )
        grid_centroids["rlon"].append(float(data__["rlon"].values))
        grid_centroids["rlat"].append(float(data__["rlat"].values))

grid_centroids = gpd.GeoDataFrame(
    grid_centroids,
    geometry=gpd.GeoSeries.from_wkt(grid_centroids["wkt"], crs=crs),
)

grid_centroids.head()

	wkt	rlon	rlat	geometry
0	POINT (-1.6799999475479126 -1.315000057220459)	-1.680	-1.315	POINT (-1.68000 -1.31500)
1	POINT (-1.6799999475479126 -1.2799999713897705)	-1.680	-1.280	POINT (-1.68000 -1.28000)
2	POINT (-1.6449999809265137 -1.5950000286102295)	-1.645	-1.595	POINT (-1.64500 -1.59500)
3	POINT (-1.6449999809265137 -1.315000057220459)	-1.645	-1.315	POINT (-1.64500 -1.31500)
4	POINT (-1.6449999809265137 -1.2799999713897705)	-1.645	-1.280	POINT (-1.64500 -1.28000)

grid_centroids.shape

(6118, 4)

grid_centroids.crs

<Derived Geographic 2D CRS: GEOGCRS["undefined",BASEGEOGCRS["undefined",DATUM[ ...>
Name: undefined
Axis Info [ellipsoidal]:
- lon[east]: Longitude (degree)
- lat[north]: Latitude (degree)
Area of Use:
- undefined
Coordinate Operation:
- name: Pole rotation (netCDF CF convention)
- method: Pole rotation (netCDF CF convention)
Datum: World Geodetic System 1984
- Ellipsoid: WGS 84
- Prime Meridian: Greenwich

grid_cells = gpd.sjoin(grid_cells, grid_centroids.to_crs(grid_cells.crs))

grid_cells.drop(columns=["wkt", "index_right"], inplace=True)

grid_cells.head()

	geometry	rlon	rlat
137	POLYGON ((-1.69750 -1.33250, -1.69750 -1.29750...	-1.680	-1.315
138	POLYGON ((-1.69750 -1.29750, -1.69750 -1.26250...	-1.680	-1.280
247	POLYGON ((-1.66250 -1.61250, -1.66250 -1.57750...	-1.645	-1.595
255	POLYGON ((-1.66250 -1.33250, -1.66250 -1.29750...	-1.645	-1.315
256	POLYGON ((-1.66250 -1.29750, -1.66250 -1.26250...	-1.645	-1.280

grid_cells.shape

(6118, 3)

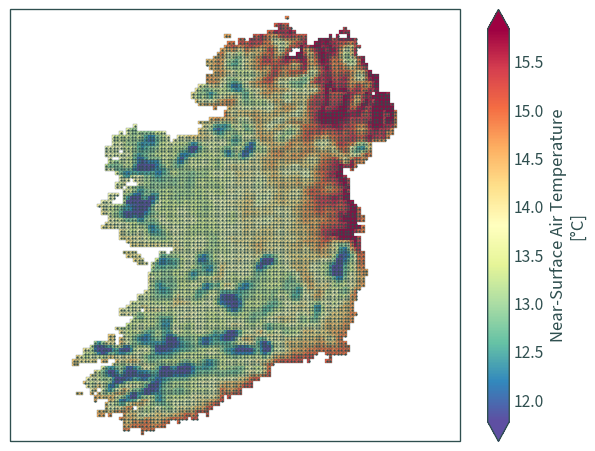

# plt.figure(figsize=(9, 7))
axs = plt.axes(projection=cplt.projection_hiresireland)

# plot data for the variable
data_["T"].plot(
    ax=axs,
    cmap="Spectral_r",
    x="rlon",
    y="rlat",
    robust=True,
    transform=plot_transform,
)

grid_cells.to_crs(cplt.projection_hiresireland).plot(
    ax=axs, edgecolor="darkslategrey", facecolor="none", linewidth=0.2
)

grid_centroids.to_crs(cplt.projection_hiresireland).plot(
    ax=axs, color="darkslategrey", markersize=0.5
)

axs.set_title(None)
plt.axis("equal")
plt.tight_layout()
plt.show()

../_images/f8a5a966ee0409896413125aa4146acf5b0ae00251b69235bd7a73947dbc7507.png

Read stocking rate data#

stocking_rate = gpd.read_file(
    os.path.join("data", "agricultural_census", "agricultural_census.gpkg"),
    layer="stocking_rate",
)

stocking_rate.crs

<Derived Projected CRS: EPSG:2157>
Name: IRENET95 / Irish Transverse Mercator
Axis Info [cartesian]:
- E[east]: Easting (metre)
- N[north]: Northing (metre)
Area of Use:
- name: Ireland - onshore. United Kingdom (UK) - Northern Ireland (Ulster) - onshore.
- bounds: (-10.56, 51.39, -5.34, 55.43)
Coordinate Operation:
- name: Irish Transverse Mercator
- method: Transverse Mercator
Datum: IRENET95
- Ellipsoid: GRS 1980
- Prime Meridian: Greenwich

stocking_rate.head()

	ENGLISH	COUNTY	PROVINCE	GUID	total_cattle	total_sheep	total_grass_hectares	electoral_division	WD22CD	WD22NM	ward_2014_name	stocking_rate	geometry
0	TURNAPIN	DUBLIN	Leinster	2ae19629-1cea-13a3-e055-000000000001	0.0	0.0	0.0	Turnapin, Co.Dublin, 04042	0	0	0	0.000000	POLYGON ((717716.712 741601.510, 717759.461 74...
1	DRUMLUMMAN	CAVAN	Ulster	2ae19629-1caa-13a3-e055-000000000001	2673.0	231.0	1249.1	Drumlumman, Co.Cavan, 32089	0	0	0	1.730446	POLYGON ((637756.185 787640.988, 637753.646 78...
2	CASTLEFORE	LEITRIM	Connacht	2ae19629-171c-13a3-e055-000000000001	630.0	0.0	805.9	Castlefore, Co.Leitrim, 28063	0	0	0	0.625388	POLYGON ((608196.069 807618.950, 608244.536 80...
3	RAHONA	CLARE	Munster	2ae19629-1fec-13a3-e055-000000000001	2369.0	0.0	1349.9	Rahona, Co.Clare, 16101	0	0	0	1.403956	POLYGON ((484212.068 651795.629, 484231.866 65...
4	CROSSAKEEL	MEATH	Leinster	2ae19629-1861-13a3-e055-000000000001	4826.0	671.0	2014.1	Crossakeel, Co.Meath, 11061	0	0	0	1.950201	POLYGON ((663308.409 776111.796, 663305.294 77...

stocking_rate.shape

(3917, 13)

stocking_rate["stocking_rate"].max()

5.627624825011666

stocking_rate["stocking_rate"].min()

0.0

stocking_rate.plot(column="stocking_rate", cmap="Spectral_r")
plt.tick_params(labelbottom=False, labelleft=False)
plt.show()

../_images/240d094ff83e32ea26278d1bad9264e9b1682f2882e29ebf438c0770da44378a.png

Reproject cells to the CRS of the stocking rate data#

# use a projected CRS (e.g. 2157) instead of a geographical CRS (e.g. 4326)
grid_cells = grid_cells.to_crs(stocking_rate.crs)

grid_cells.head()

	geometry	rlon	rlat
137	POLYGON ((417558.169 590305.235, 417549.771 59...	-1.680	-1.315
138	POLYGON ((417549.771 594200.519, 417541.440 59...	-1.680	-1.280
247	POLYGON ((421531.348 559152.004, 421522.478 56...	-1.645	-1.595
255	POLYGON ((421462.259 590312.894, 421453.924 59...	-1.645	-1.315
256	POLYGON ((421453.924 594208.112, 421445.655 59...	-1.645	-1.280

axs = stocking_rate.plot(column="stocking_rate", cmap="Spectral_r")
grid_cells.boundary.plot(color="darkslategrey", linewidth=0.2, ax=axs)
axs.tick_params(labelbottom=False, labelleft=False)
plt.show()

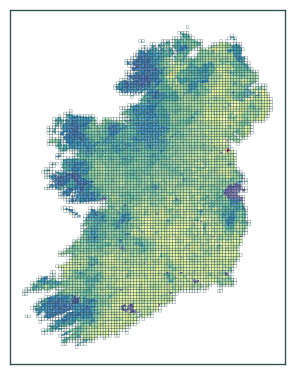

../_images/b3604a402d42db7b9969b8b5bfed831d487f9e1a15bab628aa5c886104dbfe1b.png

Create gridded stocking rate data#

merged = gpd.sjoin(stocking_rate, grid_cells, how="left")

merged.head()

	ENGLISH	COUNTY	PROVINCE	GUID	total_cattle	total_sheep	total_grass_hectares	electoral_division	WD22CD	WD22NM	ward_2014_name	stocking_rate	geometry	index_right	rlon	rlat
0	TURNAPIN	DUBLIN	Leinster	2ae19629-1cea-13a3-e055-000000000001	0.0	0.0	0.0	Turnapin, Co.Dublin, 04042	0	0	0	0.000000	POLYGON ((717716.712 741601.510, 717759.461 74...	9143	0.980	0.015
0	TURNAPIN	DUBLIN	Leinster	2ae19629-1cea-13a3-e055-000000000001	0.0	0.0	0.0	Turnapin, Co.Dublin, 04042	0	0	0	0.000000	POLYGON ((717716.712 741601.510, 717759.461 74...	9261	1.015	0.015
1	DRUMLUMMAN	CAVAN	Ulster	2ae19629-1caa-13a3-e055-000000000001	2673.0	231.0	1249.1	Drumlumman, Co.Cavan, 32089	0	0	0	1.730446	POLYGON ((637756.185 787640.988, 637753.646 78...	6795	0.280	0.435
1	DRUMLUMMAN	CAVAN	Ulster	2ae19629-1caa-13a3-e055-000000000001	2673.0	231.0	1249.1	Drumlumman, Co.Cavan, 32089	0	0	0	1.730446	POLYGON ((637756.185 787640.988, 637753.646 78...	6913	0.315	0.435
1	DRUMLUMMAN	CAVAN	Ulster	2ae19629-1caa-13a3-e055-000000000001	2673.0	231.0	1249.1	Drumlumman, Co.Cavan, 32089	0	0	0	1.730446	POLYGON ((637756.185 787640.988, 637753.646 78...	6678	0.245	0.470

merged.shape

(22237, 16)

axs = merged.plot(column="stocking_rate", cmap="Spectral_r")
grid_cells.boundary.plot(color="darkslategrey", linewidth=0.2, ax=axs)
axs.tick_params(labelbottom=False, labelleft=False)
plt.show()

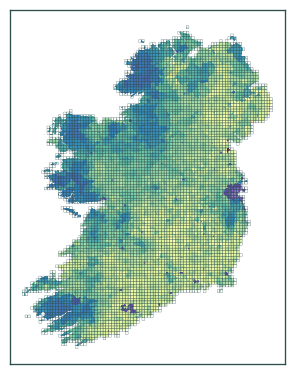

../_images/6ac420f26630f973880365fe2e48e4f9c76e17d36f63419410e59c8b3f2ac8bd.png

# compute stats per grid cell, use the mean stocking rate
dissolve = merged[["stocking_rate", "index_right", "geometry"]].dissolve(
    by="index_right", aggfunc=np.mean
)

dissolve.shape

(6116, 2)

dissolve.head()

	geometry	stocking_rate
index_right
137	MULTIPOLYGON (((421214.433 590565.624, 421215....	0.917024
138	MULTIPOLYGON (((421214.433 590565.624, 421215....	0.917024
247	MULTIPOLYGON (((424582.660 560554.883, 424573....	0.763591
255	MULTIPOLYGON (((421214.433 590565.624, 421215....	0.917024
256	MULTIPOLYGON (((421214.433 590565.624, 421215....	0.917024

len(dissolve.index.unique())

# merge with cell data
grid_cells.loc[dissolve.index, "sr"] = dissolve["stocking_rate"].values

grid_cells.shape

(6118, 4)

grid_cells.head()

	geometry	rlon	rlat	sr
137	POLYGON ((417558.169 590305.235, 417549.771 59...	-1.680	-1.315	0.917024
138	POLYGON ((417549.771 594200.519, 417541.440 59...	-1.680	-1.280	0.917024
247	POLYGON ((421531.348 559152.004, 421522.478 56...	-1.645	-1.595	0.763591
255	POLYGON ((421462.259 590312.894, 421453.924 59...	-1.645	-1.315	0.917024
256	POLYGON ((421453.924 594208.112, 421445.655 59...	-1.645	-1.280	0.917024

len(grid_cells["geometry"].unique())

grid_cells["sr"].max()

3.3106305957064275

grid_cells["sr"].min()

0.0

plt.figure(figsize=(9, 7))
axs = plt.axes(projection=cplt.projection_hiresireland)

# plot data for the variable
data_["T"].plot(
    ax=axs,
    cmap="Spectral_r",
    x="rlon",
    y="rlat",
    robust=True,
    transform=plot_transform,
)

grid_cells.to_crs(cplt.projection_hiresireland).plot(
    column="sr",
    ax=axs,
    edgecolor="darkslategrey",
    facecolor="none",
    linewidth=0.2,
)

axs.set_title(None)
plt.axis("equal")
plt.tight_layout()
plt.show()

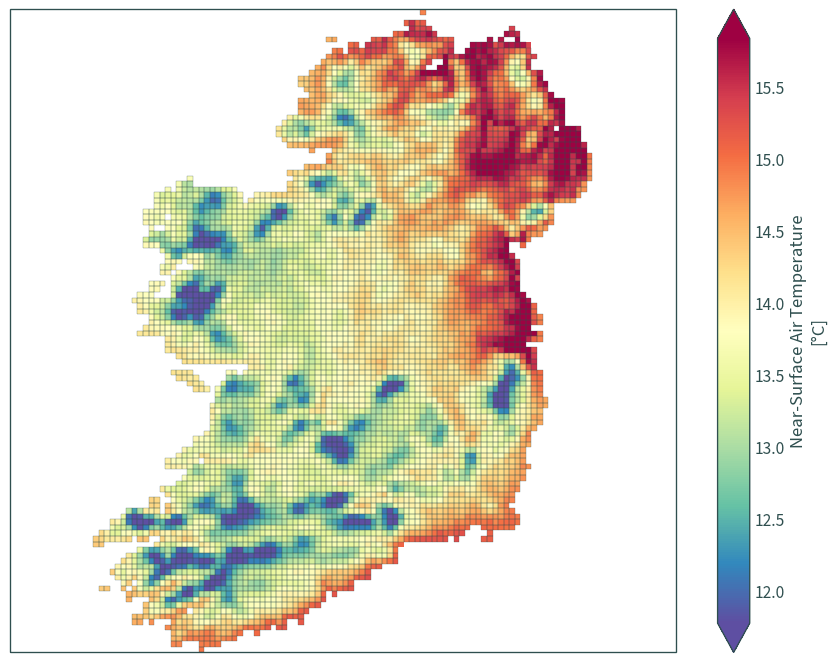

../_images/4d8966059654ba3f00c4032e7a384907b9ecb9691b51a806cefbeea403d79f77.png

axs = grid_cells.plot(
    column="sr",
    cmap="Spectral_r",
    scheme="equal_interval",
    edgecolor="darkslategrey",
    linewidth=0.2,
    figsize=(6, 7),
    legend=True,
    legend_kwds={
        "loc": "upper left",
        "fmt": "{:.2f}",
        "title": "Stocking rate [LU ha⁻¹]",
    },
    missing_kwds={
        "color": "darkslategrey",
        "edgecolor": "darkslategrey",
        "label": "No data",
    },
)
for legend_handle in axs.get_legend().legend_handles:
    legend_handle.set_markeredgewidth(0.2)
    legend_handle.set_markeredgecolor("darkslategrey")
axs.tick_params(labelbottom=False, labelleft=False)
plt.axis("equal")
plt.tight_layout()
plt.show()

../_images/5da52c3bf2db4ca43e2075a14effb1233dc3cb97782d3ada44d0e2292a8f803b.png

# fill no data with min value
grid_cells["sr"] = grid_cells["sr"].fillna(grid_cells["sr"].min())

axs = grid_cells.plot(
    column="sr",
    cmap="Spectral_r",
    scheme="equal_interval",
    edgecolor="darkslategrey",
    linewidth=0.2,
    figsize=(6, 7),
    legend=True,
    legend_kwds={
        "loc": "upper left",
        "fmt": "{:.2f}",
        "title": "Stocking rate [LU ha⁻¹]",
    },
    missing_kwds={
        "color": "darkslategrey",
        "edgecolor": "darkslategrey",
        "label": "No data",
    },
)
for legend_handle in axs.get_legend().legend_handles:
    legend_handle.set_markeredgewidth(0.2)
    legend_handle.set_markeredgecolor("darkslategrey")
axs.tick_params(labelbottom=False, labelleft=False)
plt.axis("equal")
plt.tight_layout()
plt.show()

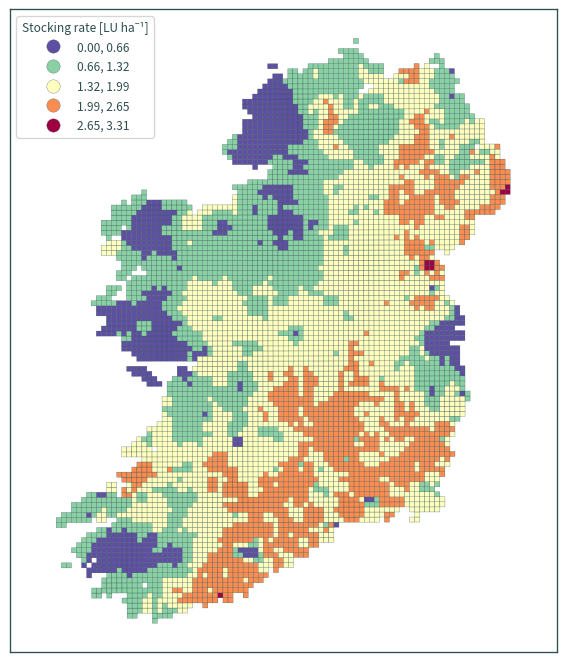

../_images/68efee44c8e2318adf746b8296dec0fccd1ad9e2b2cbdd76d5d52e0724ba2726.png

grid_cells.to_file(
    os.path.join("data", "ModVege", "params.gpkg"), layer="hiresireland"
)
