Grass growth anomalies#
Weighted means take into account the number of days in each month
import glob
import importlib
import itertools
import os
import sys
from datetime import datetime, timezone
import geopandas as gpd
import matplotlib.pyplot as plt
import numpy as np
import xarray as xr
import climag.climag as cplt
from climag import climag_plot
exp_list = ["historical", "rcp45", "rcp85"]
model_list = ["CNRM-CM5", "EC-EARTH", "HadGEM2-ES", "MPI-ESM-LR"]
dataset_list = ["EURO-CORDEX", "HiResIreland"]
def keep_minimal_vars(data):
"""
Drop variables that are not needed
"""
data = data.drop_vars(
[
"bm_gv",
"bm_gr",
"bm_dv",
"bm_dr",
"age_gv",
"age_gr",
"age_dv",
"age_dr",
"omd_gv",
"omd_gr",
"lai",
"env",
"wr",
"aet",
"sen_gv",
"sen_gr",
"abs_dv",
"abs_dr",
"c_bm",
"bm",
"pgro",
"i_bm",
"h_bm",
]
)
return data
def combine_datasets(dataset_dict, dataset_crs):
dataset = xr.combine_by_coords(
dataset_dict.values(), combine_attrs="override"
)
dataset.rio.write_crs(dataset_crs, inplace=True)
return dataset
def generate_stats(dataset):
ds = {}
for exp, model in itertools.product(exp_list, model_list):
# auto-rechunking may cause NotImplementedError with object dtype
# where it will not be able to estimate the size in bytes of object
# data
if model == "HadGEM2-ES":
CHUNKS = 300
else:
CHUNKS = "auto"
ds[f"{model}_{exp}"] = xr.open_mfdataset(
glob.glob(
os.path.join(
"data",
"ModVege",
dataset,
exp,
model,
f"*{dataset}*{model}*{exp}*.nc",
)
),
chunks=CHUNKS,
decode_coords="all",
)
# copy CRS
crs_ds = ds[f"{model}_{exp}"].rio.crs
# remove spin-up year
if exp == "historical":
ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].sel(
time=slice("1976", "2005")
)
else:
ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].sel(
time=slice("2041", "2070")
)
# convert HadGEM2-ES data back to 360-day calendar
# this ensures that the correct weighting is applied when
# calculating the weighted average
if model == "HadGEM2-ES":
ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].convert_calendar(
"360_day", align_on="year"
)
# assign new coordinates and dimensions
ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].assign_coords(exp=exp)
ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].expand_dims(dim="exp")
ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].assign_coords(model=model)
ds[f"{model}_{exp}"] = ds[f"{model}_{exp}"].expand_dims(dim="model")
# drop unnecessary variables
ds[f"{model}_{exp}"] = keep_minimal_vars(data=ds[f"{model}_{exp}"])
# weighted mean
weights = (
ds[f"{model}_{exp}"]["time"].dt.days_in_month.groupby("time.year")
/ ds[f"{model}_{exp}"]["time"]
.dt.days_in_month.groupby("time.year")
.sum()
)
# test that the sum of weights for each season is one
np.testing.assert_allclose(
weights.groupby("time.year").sum().values,
np.ones(len(set(weights["year"].values))),
)
# calculate the weighted average
ds[f"{model}_{exp}"] = (
(ds[f"{model}_{exp}"] * weights)
.groupby("time.year")
.sum(dim="time")
)
# combine data
ds = combine_datasets(ds, crs_ds)
# ensemble mean
ds = ds.mean(dim="model", skipna=True)
# long-term average
ds_lta = ds.mean(dim="year", skipna=True)
return ds, ds_lta
# mask out non-pasture areas
mask_layer = gpd.read_file(
os.path.join("data", "boundaries", "boundaries_all.gpkg"),
layer="CLC_2018_MASK_PASTURE_2157_IE",
)
# mask for offshore areas
ie_bbox = gpd.read_file(
os.path.join("data", "boundaries", "boundaries_all.gpkg"),
layer="ne_10m_land_2157_IE_BBOX_DIFF",
)
def plot_diff(data, levels, mask=True):
for exp in list(data["exp"].values):
print(exp)
if exp == "historical":
data_plot = data.sel(year=slice("1976", "2005"))
else:
data_plot = data.sel(year=slice("2041", "2070"))
fig = data_plot.sel(exp=exp)["gro"].plot.contourf(
x="rlon",
y="rlat",
col="year",
col_wrap=6,
subplot_kws={"projection": cplt.projection_hiresireland},
transform=cplt.rotated_pole_transform(data),
xlim=(-1.775, 1.6),
ylim=(-2.1, 2.1),
figsize=(12, 15.25),
extend="both",
robust=True,
cmap="BrBG",
levels=colorbar_levels(levels),
cbar_kwargs={
"label": "Anomaly [kg DM ha⁻¹ day⁻¹]",
"aspect": 40,
"location": "bottom",
"fraction": 0.085,
"shrink": 0.85,
"pad": 0.025,
"extendfrac": "auto",
"ticks": climag_plot.colorbar_ticks(levels),
},
)
for axis in fig.axs.flat:
if mask:
mask_layer.to_crs(cplt.projection_hiresireland).plot(
ax=axis, color="white", linewidth=0
)
ie_bbox.to_crs(cplt.projection_hiresireland).plot(
ax=axis,
edgecolor="darkslategrey",
color="white",
linewidth=0.5,
)
fig.set_titles("{value}", weight="semibold", fontsize=14)
plt.show()
Anomalies per year#
eurocordex, eurocordex_lta = generate_stats("EURO-CORDEX")
eurocordex_diff = eurocordex - eurocordex_lta
hiresireland, hiresireland_lta = generate_stats("HiResIreland")
hiresireland_diff = hiresireland - hiresireland_lta
EURO-CORDEX#
# plot_diff(eurocordex_diff, 8)
Compared to historical (1976-2005) LTA#
# plot_diff(
# (
# eurocordex.sel(exp=["rcp45", "rcp85"]) -
# eurocordex_lta.sel(exp="historical").drop_vars("exp")
# ),
# 8
# )
HiResIreland#
# plot_diff(hiresireland_diff, 8)
Compared to historical (1976-2005) LTA#
# plot_diff(
# (
# hiresireland.sel(exp=["rcp45", "rcp85"]) -
# hiresireland_lta.sel(exp="historical").drop_vars("exp")
# ),
# 8
# )
Mean#

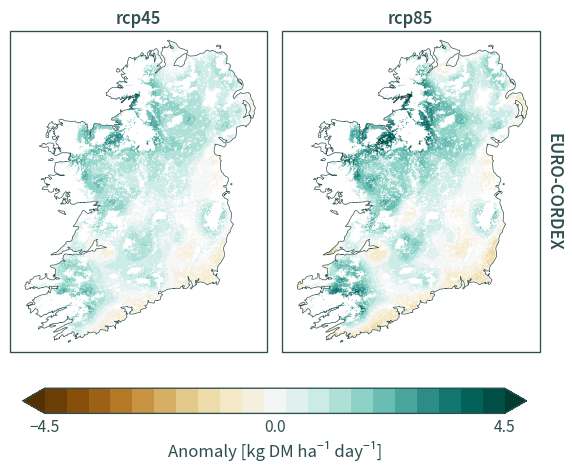

EURO-CORDEX#
plot_data = (
(
eurocordex.mean(dim="year", skipna=True)
- eurocordex_lta.sel(exp="historical").drop_vars("exp")
)
.sel(exp=["rcp45", "rcp85"])
.assign_coords(dataset="EURO-CORDEX")
.expand_dims(dim="dataset")
)
# plot_data["exp"] = plot_data["exp"].where(
# plot_data["exp"] != "rcp45", "rcp45 - historical"
# )
# plot_data["exp"] = plot_data["exp"].where(
# plot_data["exp"] != "rcp85", "rcp85 - historical"
# )
fig = plot_data["gro"].plot.contourf(
x="rlon",
y="rlat",
col="exp",
row="dataset",
robust=True,
extend="both",
cmap="BrBG",
subplot_kws={"projection": cplt.projection_hiresireland},
transform=cplt.rotated_pole_transform(plot_data),
xlim=(-1.775, 1.6),
ylim=(-2.1, 2.1),
figsize=(6, 4.75),
levels=climag_plot.colorbar_levels(4.5),
cbar_kwargs={
"label": "Anomaly [kg DM ha⁻¹ day⁻¹]",
"aspect": 20,
"location": "bottom",
"fraction": 0.085,
"shrink": 0.95,
"pad": 0.085,
"extendfrac": "auto",
"ticks": climag_plot.colorbar_ticks(4.5),
},
)
for axis in fig.axs.flat:
mask_layer.to_crs(cplt.projection_hiresireland).plot(
ax=axis, color="white", linewidth=0
)
ie_bbox.to_crs(cplt.projection_hiresireland).plot(
ax=axis, edgecolor="darkslategrey", color="white", linewidth=0.5
)
fig.set_titles("{value}", weight="semibold", fontsize=14)
plt.show()

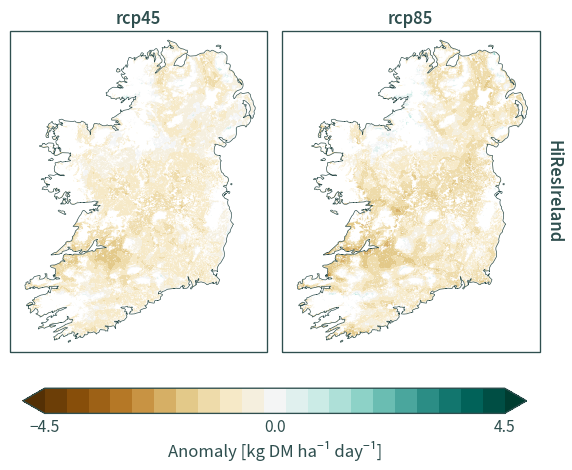

HiResIreland#
plot_data = (
(
hiresireland.mean(dim="year", skipna=True)
- hiresireland_lta.sel(exp="historical").drop_vars("exp")
)
.sel(exp=["rcp45", "rcp85"])
.assign_coords(dataset="HiResIreland")
.expand_dims(dim="dataset")
)
# plot_data["exp"] = plot_data["exp"].where(
# plot_data["exp"] != "rcp45", "rcp45 - historical"
# )
# plot_data["exp"] = plot_data["exp"].where(
# plot_data["exp"] != "rcp85", "rcp85 - historical"
# )
fig = plot_data["gro"].plot.contourf(
x="rlon",
y="rlat",
col="exp",
row="dataset",
robust=True,
extend="both",
cmap="BrBG",
subplot_kws={"projection": cplt.projection_hiresireland},
transform=cplt.rotated_pole_transform(plot_data),
xlim=(-1.775, 1.6),
ylim=(-2.1, 2.1),
figsize=(6, 4.75),
levels=climag_plot.colorbar_levels(4.5),
cbar_kwargs={
"label": "Anomaly [kg DM ha⁻¹ day⁻¹]",
"aspect": 20,
"location": "bottom",
"fraction": 0.085,
"shrink": 0.95,
"pad": 0.085,
"extendfrac": "auto",
"ticks": climag_plot.colorbar_ticks(4.5),
},
)
for axis in fig.axs.flat:
mask_layer.to_crs(cplt.projection_hiresireland).plot(
ax=axis, color="white", linewidth=0
)
ie_bbox.to_crs(cplt.projection_hiresireland).plot(
ax=axis, edgecolor="darkslategrey", color="white", linewidth=0.5
)
fig.set_titles("{value}", weight="semibold", fontsize=14)
plt.show()
