Visualising climate model datasets#
import os
import glob
import itertools
import numpy as np
from datetime import datetime, timezone
import geopandas as gpd
import matplotlib.pyplot as plt
import pandas as pd
import xarray as xr
import climag.climag as cplt
import cartopy.crs as ccrs
import seaborn as sns
from climag import climag_plot
# met station coords
# Wexford,4015,ENNISCORTHY (Brownswood),18,297870,135550,1983,(null)
LON, LAT = -6.56083, 52.46306
# Ireland boundary
GPKG_BOUNDARY = os.path.join("data", "boundaries", "boundaries_all.gpkg")
ie_bbox = gpd.read_file(GPKG_BOUNDARY, layer="ne_10m_land_2157_IE_BBOX_DIFF")
datasets = {}
for exp, model, data in itertools.product(
["historical", "rcp45", "rcp85"],
["CNRM-CM5", "EC-EARTH", "HadGEM2-ES", "MPI-ESM-LR"],
["EURO-CORDEX", "HiResIreland"],
):
# auto-rechunking may cause NotImplementedError with object dtype
# where it will not be able to estimate the size in bytes of object data
if model == "HadGEM2-ES":
CHUNKS = 300
else:
CHUNKS = "auto"
datasets[f"{data}_{model}_{exp}"] = xr.open_dataset(
glob.glob(
os.path.join("data", data, "IE", f"*{data}*{model}*{exp}*.nc")
)[0],
chunks=CHUNKS,
decode_coords="all",
)
# convert HadGEM2-ES data back to 360-day calendar
# this ensures that the correct weighting is applied when calculating
# the weighted average
if model == "HadGEM2-ES":
datasets[f"{data}_{model}_{exp}"] = datasets[
f"{data}_{model}_{exp}"
].convert_calendar("360_day", align_on="year")
# remove spin-up year
for key in datasets.keys():
if "historical" in key:
datasets[key] = datasets[key].sel(time=slice("1976", "2005"))
else:
datasets[key] = datasets[key].sel(time=slice("2041", "2070"))
# # normalise to keep only date in time
# datasets[key]["time"] = datasets[key].indexes["time"].normalize()
varlist = ["PAR", "PET", "PP", "T"]

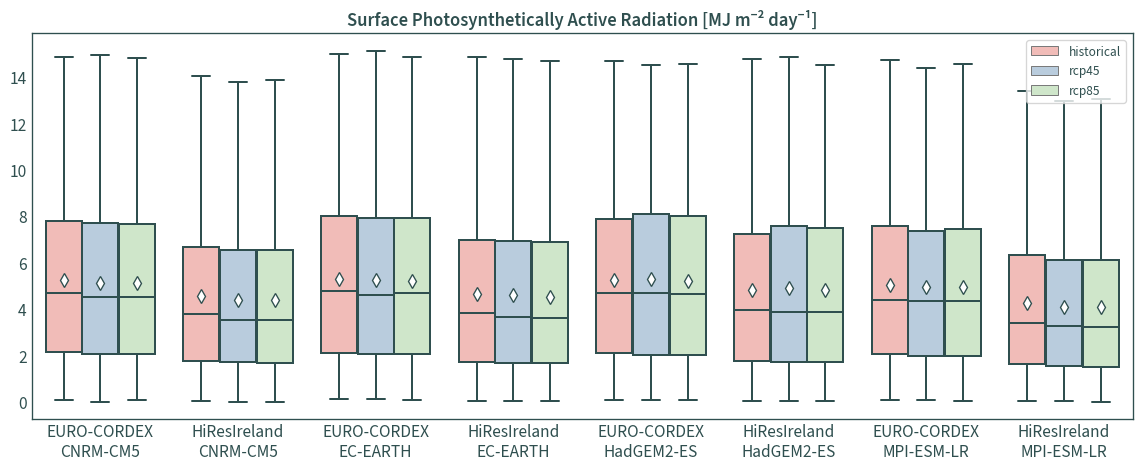

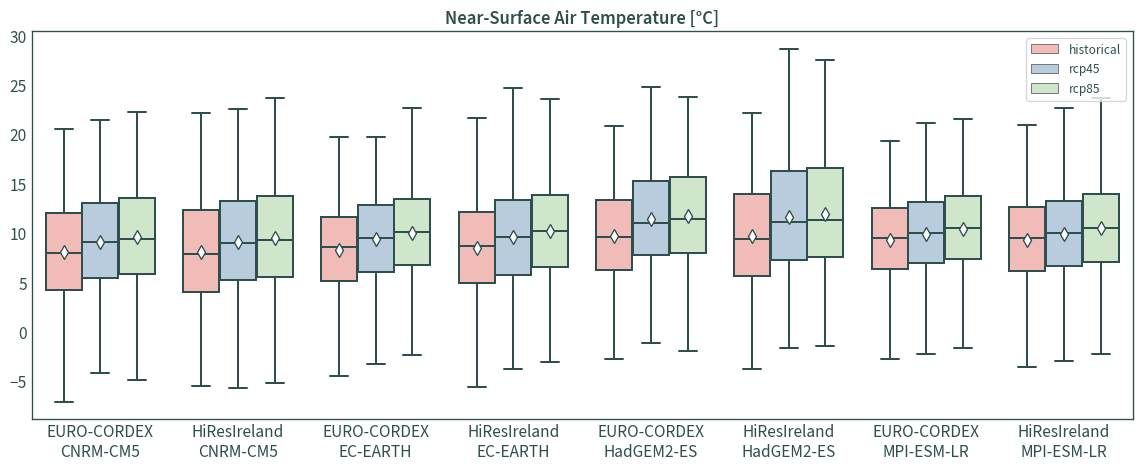

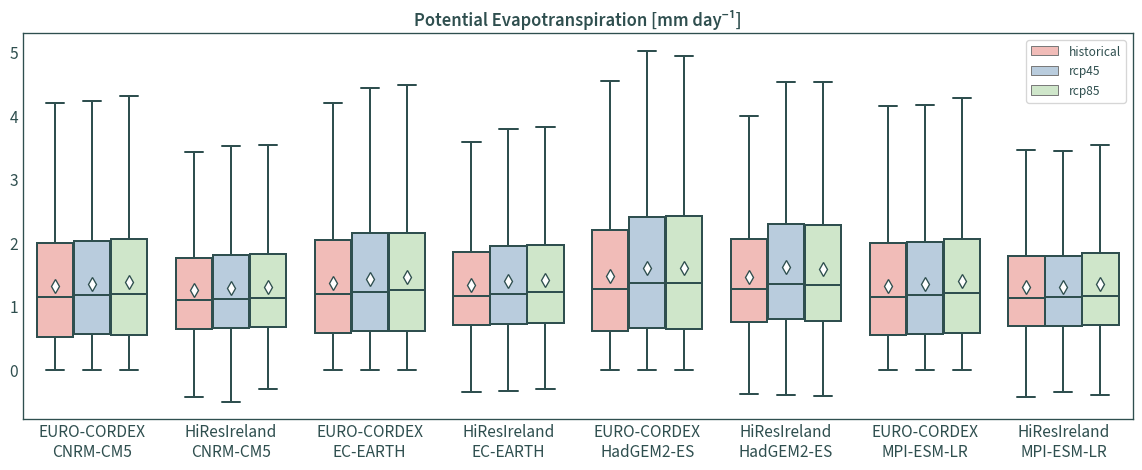

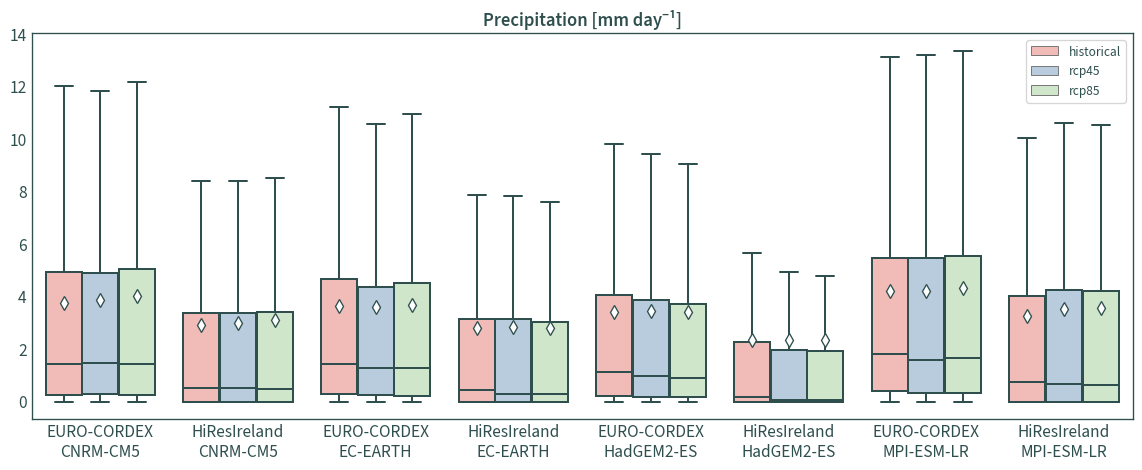

Box plots#
data_all = climag_plot.boxplot_data(
datasets=datasets, varlist=varlist, lonlat=(LON, LAT)
)
for var in varlist:
climag_plot.boxplot_all(
data=data_all[var],
var=var,
title=(
datasets["EURO-CORDEX_EC-EARTH_rcp45"][var].attrs["long_name"]
+ f" [{datasets['EURO-CORDEX_EC-EARTH_rcp45'][var].attrs['units']}]"
),
)

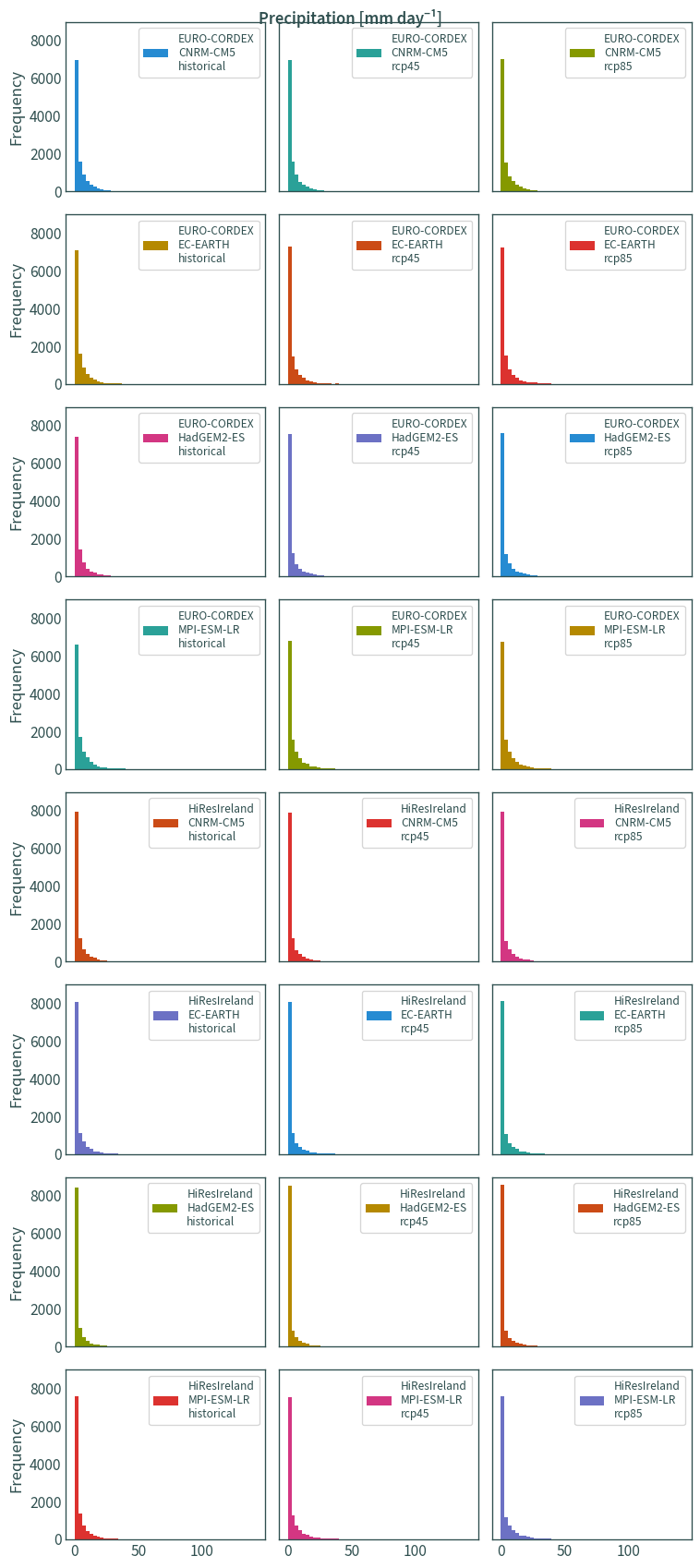

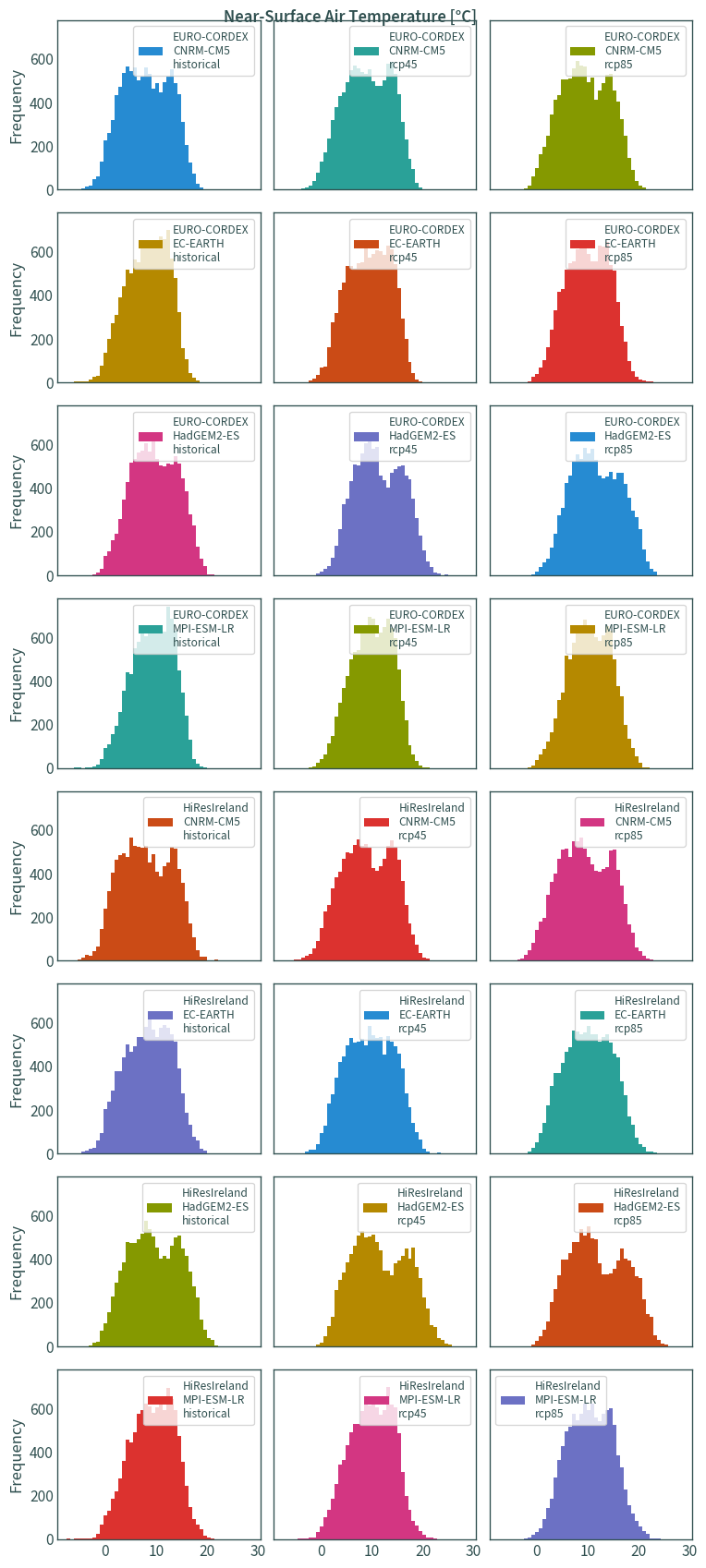

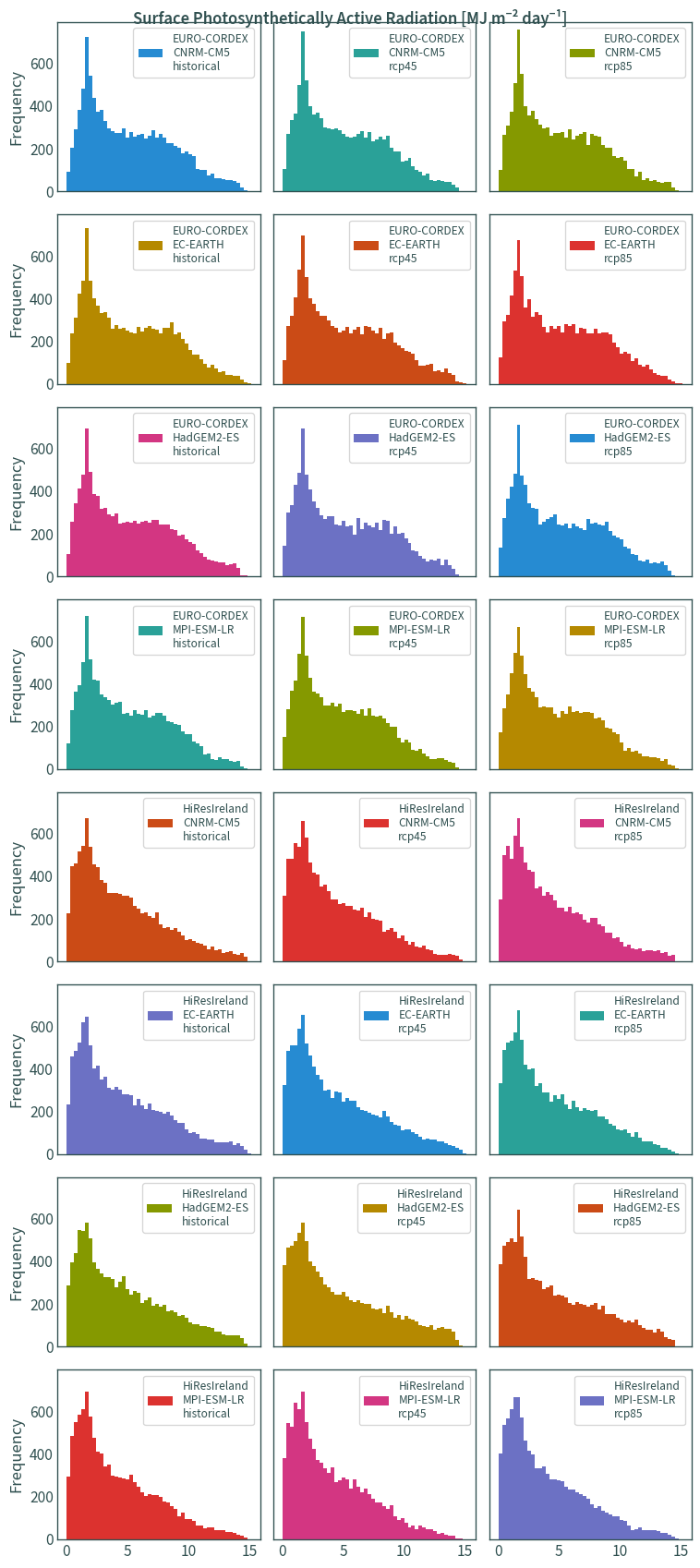

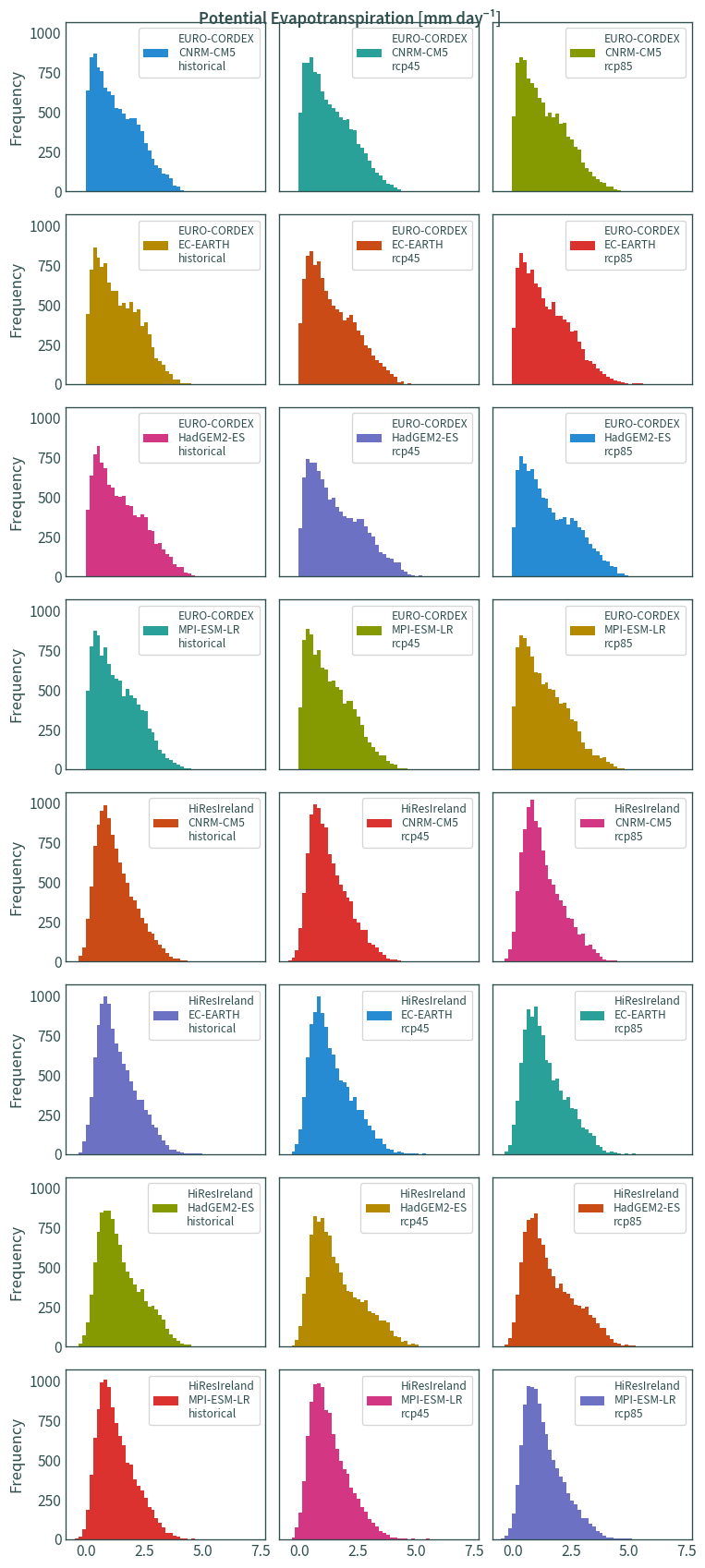

Histograms#
for var in varlist:
data_pivot = pd.pivot_table(
data_all[var], values=var, columns="legend", index=data_all[var].index
)
data_pivot.plot(
kind="hist",
subplots=True,
figsize=(8, 18),
bins=50,
sharex=True,
sharey=True,
layout=(8, 3),
title=(
datasets["EURO-CORDEX_EC-EARTH_rcp45"][var].attrs["long_name"]
+ f" [{datasets['EURO-CORDEX_EC-EARTH_rcp45'][var].attrs['units']}]"
# f" at Moorepark ({LON}, {LAT})"
),
)
plt.tight_layout()
plt.show()

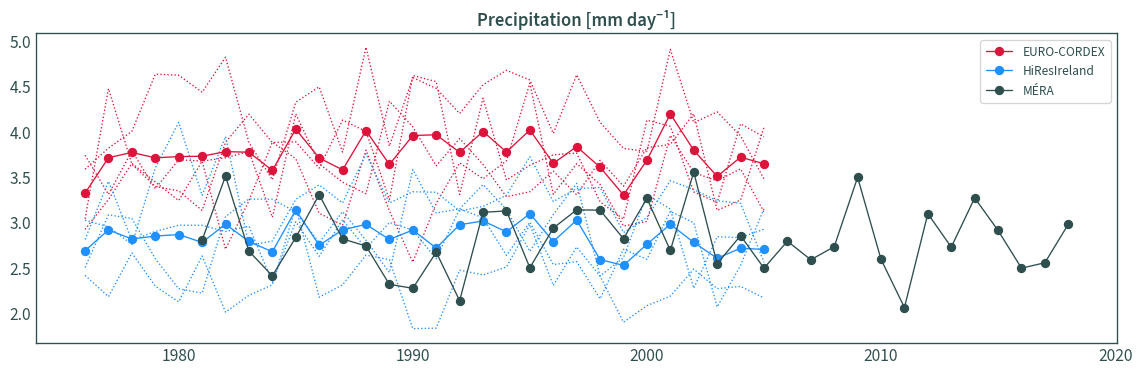

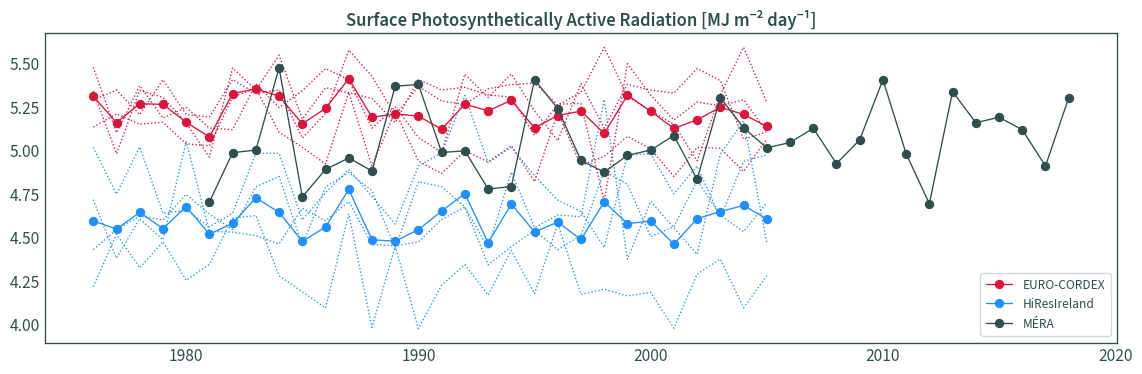

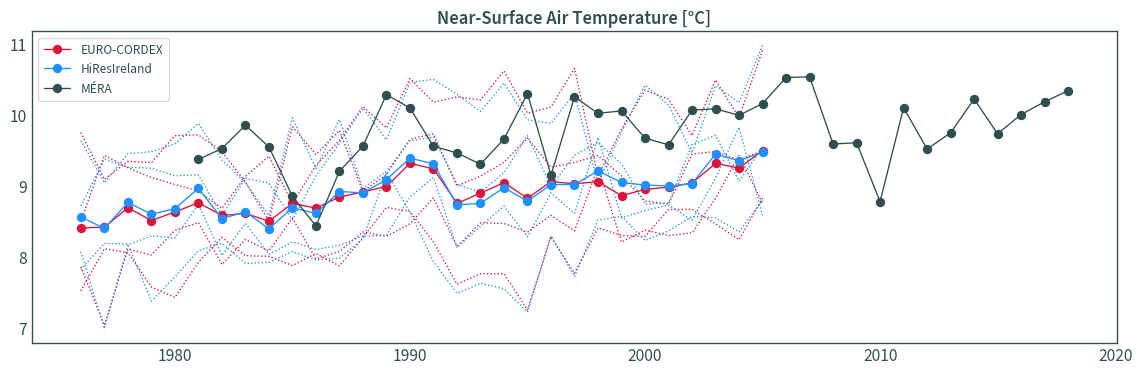

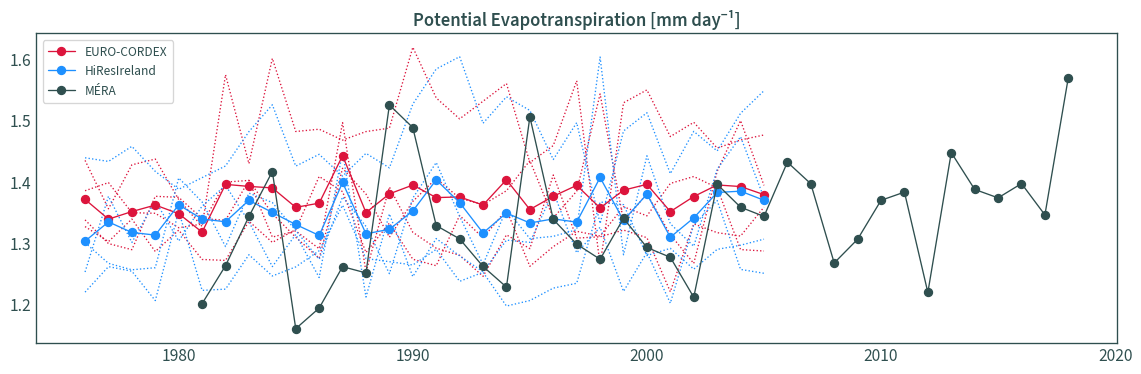

Multi-model time series#
datasets["MÉRA"] = xr.open_dataset(
"data/MERA/IE_MERA_FC3hr_3_day.nc", decode_coords="all", chunks="auto"
)
datasets["MÉRA"] = datasets["MÉRA"].sel(time=slice("1981", "2018"))
datasets["MÉRA"].rio.write_crs(cplt.projection_lambert_conformal, inplace=True)
<xarray.Dataset>
Dimensions: (x: 158, y: 166, time: 13879)
Coordinates:
* x (x) float64 4.15e+05 4.175e+05 ... 8.05e+05 8.075e+05
* y (y) float64 4.075e+05 4.1e+05 ... 8.175e+05 8.2e+05
height float64 ...
Lambert_Conformal int64 ...
* time (time) datetime64[ns] 1981-01-01 ... 2018-12-31
spatial_ref int64 0
Data variables:
PAR (time, y, x) float32 dask.array<chunksize=(6198, 73, 70), meta=np.ndarray>
PET (time, y, x) float32 dask.array<chunksize=(6198, 73, 70), meta=np.ndarray>
T (time, y, x) float32 dask.array<chunksize=(6198, 73, 70), meta=np.ndarray>
PP (time, y, x) float32 dask.array<chunksize=(6198, 73, 70), meta=np.ndarray>
Attributes:
CDI: Climate Data Interface version 2.0.5 (https://mpimet.mpg.de...
Conventions: CF-1.6
CDO: Climate Data Operators version 2.0.5 (https://mpimet.mpg.de...
dataset: IE_MERA_FC3hr_3_dayvar_attrs = {}
for var in varlist:
var_attrs[var] = datasets["EURO-CORDEX_CNRM-CM5_historical"][var].attrs
ts = {}
for key in datasets.keys():
ts[key] = cplt.weighted_average(data=datasets[key], averages="year")
ts[key].rio.write_crs(datasets[key].rio.crs, inplace=True)
for var in varlist:
ts[key][var].attrs = var_attrs[var]
for exp, model, data in itertools.product(
["historical", "rcp45", "rcp85"],
["CNRM-CM5", "EC-EARTH", "HadGEM2-ES", "MPI-ESM-LR"],
["EURO-CORDEX", "HiResIreland"],
):
# using met station coordinates
cds = cplt.rotated_pole_point(
data=ts[f"{data}_{model}_{exp}"], lon=LON, lat=LAT
)
ts[f"{data}_{model}_{exp}"] = ts[f"{data}_{model}_{exp}"].sel(
{"rlon": cds[0], "rlat": cds[1]}, method="nearest"
)
cds = cplt.projection_lambert_conformal.transform_point(
x=LON, y=LAT, src_crs=ccrs.PlateCarree()
)
ts["MÉRA"] = ts["MÉRA"].sel({"x": cds[0], "y": cds[1]}, method="nearest")
for var in varlist:
df_1 = pd.DataFrame(
{"time": ts["EURO-CORDEX_CNRM-CM5_historical"]["year"]}
)
df_1.set_index("time", inplace=True)
df_2 = df_1.copy()
for model, data in itertools.product(
["CNRM-CM5", "EC-EARTH", "HadGEM2-ES", "MPI-ESM-LR"],
["EURO-CORDEX", "HiResIreland"],
):
if data == "HiResIreland":
df_2[f"{data}_{model}_historical"] = ts[
f"{data}_{model}_historical"
][var]
else:
df_1[f"{data}_{model}_historical"] = ts[
f"{data}_{model}_historical"
][var]
df_3 = pd.DataFrame({"time": ts["MÉRA"]["year"]})
df_3.set_index("time", inplace=True)
df_3["MÉRA"] = ts["MÉRA"][var]
ax = df_1.plot(
figsize=(12, 4),
legend=False,
color="crimson",
linewidth=1,
linestyle="dotted",
)
df_2.plot(
legend=False,
color="dodgerblue",
ax=ax,
linewidth=1,
linestyle="dotted",
)
df_1.mean(axis=1).plot(
color="crimson",
label="EURO-CORDEX",
legend=True,
linewidth=1,
marker="o",
)
df_2.mean(axis=1).plot(
color="dodgerblue",
label="HiResIreland",
legend=True,
linewidth=1,
marker="o",
)
df_3.plot(color="darkslategrey", ax=ax, linewidth=1, marker="o")
plt.xlabel("")
plt.title(
f"{ts['MÉRA'][var].attrs['long_name']} [{ts['MÉRA'][var].attrs['units']}]"
)
plt.tight_layout()
plt.show()
